ENGINE MODEL & EQUIPMENT:

1000 Series
1004.40 (AA)

NATURALLY ASPIRATED

Lip Seal

4 Cyl

Bore:
3.937 in
100.00 mm

CLARK EQUIPMENT

C500Y 110-155(AA70370)
CGC40 (CGC470)Fork Lift
CGC50 (CGC470)Fork Lift
CGC55 (CGC470)Fork Lift
CGC60 (CGC470)Fork Lift
CGC70 (CGC470)Fork Lift
CGP40 (CGP460)Fork Lift
CGP45 (CGP460)Fork Lift
CGP50 (CGP460)Fork Lift
CGP55 (CGP460)Fork Lift

FG WILSON

P27P1S
XP27P1S
P30E1S
P32P1S
XP32P1S
P35E1S
P36P1S
P40E1S
P40P1
XP35E1S
XP36P1S
XP40P1
P44E1
P45P1
XP44E1
XP45P1
P50E1
XP50E1

HYSTER

H70-155XL(AA70218)
H80-155XL(AA70218)
S80-S155XL(AA70216)

JCB

3CX Backhoe(AA50508)
Backhoe Loader(AA50608)

MANITOU

KD
KD Low Emissions

LANDINI

GLOBUS 65Tractor

HARLAN

HLP30 Low Profile Tractor
HLP40 Low Profile Tractor
HLP50 Low Profile Tractor
HLP80 Low Profile Tractor
HTA30 Low Profile Tractor
HTA40 Low Profile Tractor
HTA50 Low Profile Tractor
HTA60 Low Profile Tractor
HTA70 Low Profile Tractor
HTA80 Low Profile Tractor

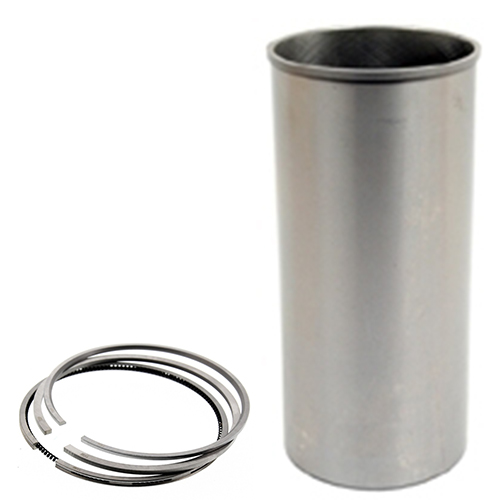

Piston Ring Set
A64307
Liner - Finished
A46425 (1)
4 Per Engine

Main Bearing Set
A57103 Std.

A57103A 0.010
A57103B 0.020
A57103C 0.030
Set Of 5 Pairs

Con Rod Bearing Set
A58407 Std.

A58407A 0.010
A58407B 0.020
A58407C 0.030
Set Of 4 Pairs

Thrust Washer Set
A40975 Std.

A41691 0.007

Set Of 2 Pairs

1. Crankshaft Kit
A63207

2. Rear Seal
A47198 (2)
A48731 (3)

3. Front Seal
A43908

4. Ring Gear
A59329  115T
A43617  126T

1. Top Gasket Set
A48286

2. Bottom Gasket Set
 A51263

3. Gasket - Rocker Cover
 A57012

4. Head Gasket
A58882

1. Bush, Con Rod
A56021 x4

2. Bolt, Con Rod
A46630 x8

3. Nut, Con Rod
A65392 x8

4. Con Rod
A56849

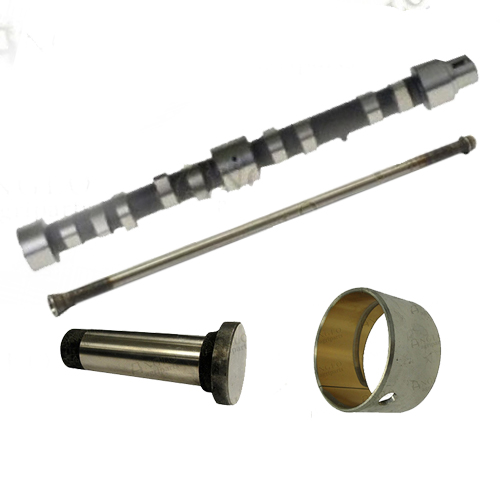

Bushing, Cam
A65568 x1

Camshaft
A49712

Tappet
A57622

Pushrod
A52646

Camshaft Gear
A51708

1. Valve Inlet A41499 x4

2. Valve Exhaust A58927 x4

3a. Valve Guide; Intake; A55852 x4

3b. Valve Guide; Exhaust A65763 x4

4. Valve Spring Inner A61489 x8

5. Valve Cotter A45458 x16

6. Valve Seal A63050S x8

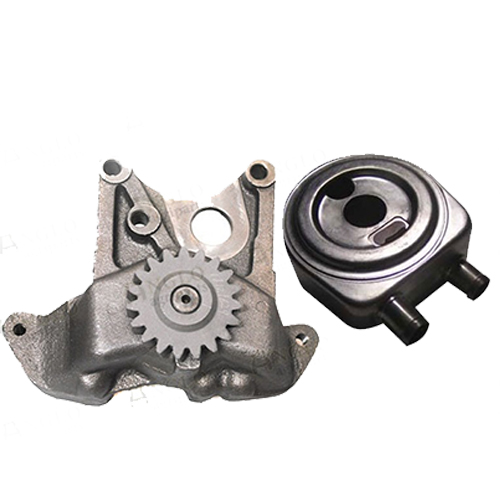

Oil Pump
A57232

Oil Cooler Donut
A68179

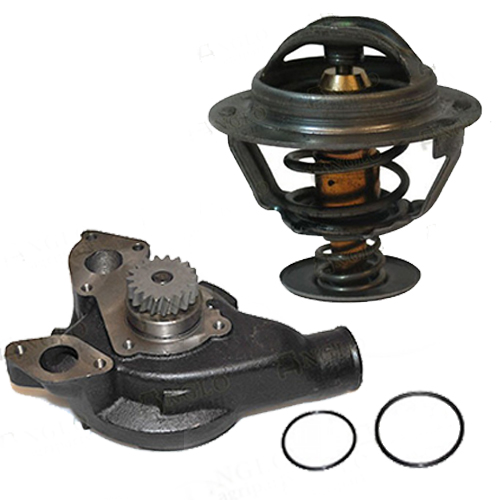

Water Pump
A50300 (4)

Thermostat
A50948

Fuel Pump
A58872

1. Rocker Arm LH
A57873

2. Rocker Arm RH
A45709

Heater Plug
A40377 Spade Terminal (bayonet fitting)

Whilst we strive to provide accurate data, on occasion information may be omitted or inaccurate. Please contact us at admin@anglo-agirparts.com if you identify an error or omission. We strongly advise you check confirm parts suitably via our Perkins Engine Search filter.
