International Harvester 434 Major Works Part 6 - Cam Shaft

This photograph shows the gear, retaining plate, woodruff key and camshaft disassembled.

The gear is a press fit onto the end of the camshaft and located by the woodruff key for correct timing.

The retaining plate fits between the gear and the first camshaft bearing journal (the larger diameter top-right of the photograph) and needs to have the correct clearance to allow free running but not too much end float. The clearance can be easily measured with a feeler gauge and should be in the range 8 to 17 thou. If this is incorrect, the gear can be pressed further onto the camshaft to compensate for wear. Too much end float will allow the camshaft to move longitudinally and, as the gears are helically cut, this will affect the valve timing and could also lead to gear rattle.

Two bolts through the retaining plate hole the camshaft in place, but with the standard gear’s three holes, the camshaft has to be rotated to remove one bolt at a time.

This engine required a new gear. This is a photograph of the replacement gear supplied by Anglo (A90621). As can be seen it looks quite different to the red three-hole part fitted originally and shown on the website but is a direct replacement. As it has two holes it is actually easier to install or remove the camshaft as both bolts are accessible at the same time.

Unfortunately, and as can be seen in the photograph, there was moulding flash in both holes. Anglo has been notified so hopefully other gears will not have this issue. Both holes were cleaned up with a carbide burr in the drill. Aside from this minor point the gear was well mode with nicely machined bore and keyway.
Removing the old gear simply involves supporting the gear in a press and pushing the camshaft out. Fitting a new gear requires the camshaft to be supported while the gear is pressed onto the camshaft. I use V blocks supporting the first bearing journal – don’t just support on the opposite end of the camshaft as the press could bend it. Check the retaining plate clearance while pressing the gear on and stop when it is in tolerance.

My small 6 tonne press had no difficulty with this task. It may even be possible to do the job with a gear puller, but I haven’t tried.

Checking Between Centres

Assuming a suitable sized lathe is available, the simplest way to check the camshaft is as shown in this photograph where it is mounted between two rotating centres (the second is in the tailstock just to the right of the gear).

The bearing journals can be checked for wear with a micrometer and should be:

• Front 1.811/1.812”
• Centre 1.577/1.578”
• Rear 1.499/1.500”

With a dial indicator on each journal, rotate the camshaft to confirm that it isn’t bent – very unlikely but if you’re going to use a reclaimed part this could be an issue.

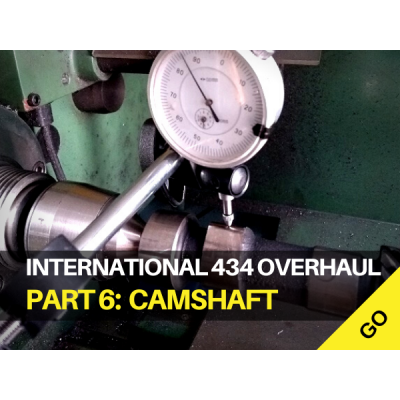

The cam lift can be measured using a dial indicator resting on the cam. For each cam in turn, rotate the camshaft to find the lowest point and zero the dial. Rotate the camshaft to find the highest point and the reading will now be the cam lift.

The specified tolerances are:

• Inlet 0.2175/0.2195”
• Exhaust 0.1955/0.1975”

On this engine the camshaft was still just within tolerance but, as so many other parts needed replacing, I decided to fit a new one to ensure maximum future engine life. The same Anglo replacement (A42083) fits BD144 and BD154 diesel and BC144 petrol engines. The replacement seemed to be of high quality and I had no issues with it.

Checking In Engine

Checking the camshaft lift while in the engine is possible… but not that easy to photograph!

With the liners removed it is possible to mount a dial indicator to measure the cam lift in essentially the same way as described when between centres in a lathe. It isn’t however as convenient.

If the liners are still in place then it may be possible to measure from the top of a pushrod (or even the rocker arm), although I haven’t tried this. The pushrod may need some support to ensure accurate readings.

The next article will cover the connecting rod small end bush, how to measure and replace if necessary.
